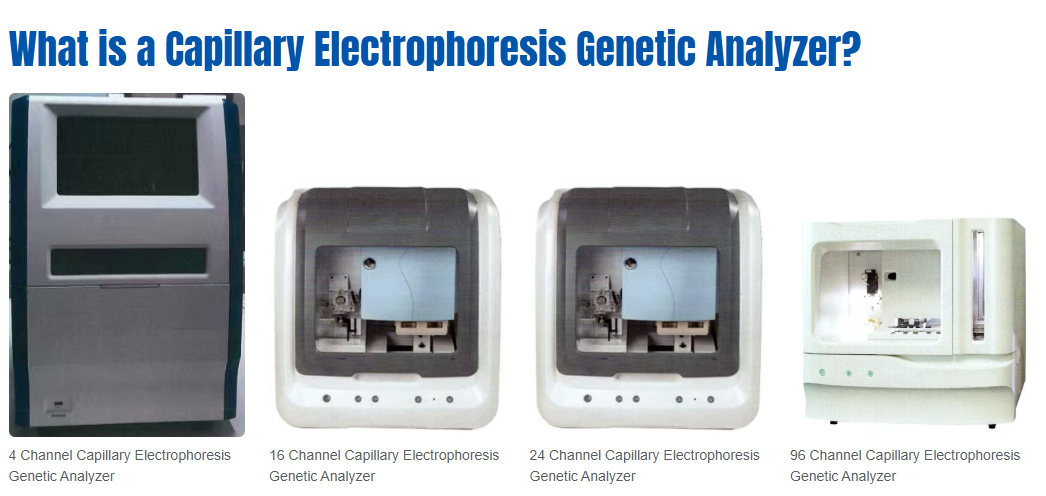

Sensitivity Performance of Capillary Electrophoresis Genetic Analyzers for Degraded DNA Samples

The generation of a reliable DNA profile from evidence collected at a scene is the cornerstone of modern investigative science. However, the biological material left behind is rarely in pristine condition. Sunlight, humidity, bacterial growth, and time itself conspire to fragment the genetic code into smaller and smaller pieces. This page provides a detailed examination of how capillary electrophoresis genetic analyzers address this specific challenge of degraded DNA. It explores the underlying physics of the separation process, the critical role of polymer chemistry in resolving fragmented alleles, the impact of advanced fluorescence detection on low-template samples, and the specific signal processing algorithms that distinguish true allelic peaks from background noise. Furthermore, this discussion connects the analytical sensitivity of the detection platform to the essential upstream processes, including the performance of aged evidence extraction kits and the amplification strategies designed to overcome the limitations imposed by compromised biological substrates.

The Fundamental Challenge of Analyzing Compromised Biological Material

When genetic material is subjected to harsh environmental conditions or simply the passage of many years, the long, continuous strands of deoxyribonucleic acid undergo a process of fragmentation. This is not a controlled cleavage but a random scission of the sugar-phosphate backbone, driven by hydrolysis and oxidative damage. For the analyst, this means that the larger target regions typically amplified in standard short tandem repeat chemistries may be broken at points that prevent the polymerase enzyme from completing its extension. Consequently, a reaction that expects to generate a fragment of several hundred base pairs may fail entirely, leading to a phenomenon known as allelic dropout. In a pristine sample, the larger loci amplify with similar efficiency to the smaller loci, resulting in a balanced electropherogram. In degraded samples, however, the signal strength of larger amplicons diminishes relative to the smaller ones, creating a distinctive ski-slope effect that complicates interpretation and can obscure the true genotype of the contributor.

The sensitivity of a capillary electrophoresis genetic analyzer in this context is not merely a function of how little DNA it can detect, but rather its ability to accurately resolve and size the fragments that survive the degradation process. Since degradation leaves behind only the shorter sequences, the analytical focus shifts toward the ability to distinguish true short tandem repeat alleles from primer dimers, dye blobs, and other low molecular weight artifacts that populate the left side of the electropherogram. The analyzer must maintain high resolution in the 50 to 250 base pair range, where the majority of informative peaks for compromised samples reside. This requires a delicate balance between the electric field strength, the viscosity of the sieving polymer, and the temperature control within the capillary array. A slight fluctuation in any of these parameters can merge two closely migrating peaks or cause a genuine allele to be lost in the baseline noise, thereby reducing the confidence of the match statistic reported to the investigating authority.

Impact of Fragmentation on Short Tandem Repeat Allele Recovery

The stochastic nature of DNA degradation presents a unique statistical hurdle. Because the template molecules are broken at random locations, the number of intact copies available for any specific locus decreases as the target size increases. In forensic genetic analysis, a locus like FGA, which generates fragments often exceeding 300 base pairs, is frequently the first to drop out when a sample is compromised. The analyzer's injection protocol, typically electrokinetic injection, further complicates this picture. Smaller fragments have higher electrophoretic mobility and are preferentially loaded onto the capillary compared to larger fragments of the same molar concentration. This means that in a degraded sample, the signal from smaller loci is not only preserved but can be artificially enhanced relative to the depleted signal from larger loci. Understanding this electrokinetic bias is essential for setting appropriate analytical thresholds and for distinguishing a true mixture of two individuals from a degraded single-source profile exhibiting imbalance.

Modern capillary electrophoresis instruments mitigate some of this interpretive risk through enhanced optical systems. A more sensitive charge-coupled device camera, coupled with a stable solid-state laser, allows for the detection of alleles that might have fallen below the limit of detection on older platforms. This improved signal-to-noise ratio is particularly valuable when working with aged skeletal remains or formalin-fixed paraffin-embedded tissues, where the available template is not only fragmented but often chemically modified. The ability to reliably call alleles at just a few dozen relative fluorescence units above the baseline can mean the difference between an exclusion and a definitive identification. When combined with robust degraded DNA analysis strategies, the analyzer becomes a powerful tool for unlocking information from evidence that was previously considered unsuitable for further testing.

Baseline Noise and Artifact Discrimination in Compromised Templates

As the amount of intact DNA decreases, the relative contribution of non-specific artifacts to the total signal increases. Every capillary electrophoresis injection contains a background of unincorporated fluorescent dyes, microscopic polymer crystals, and stray ions that generate a fluctuating baseline. In a high-quality sample with strong amplification, the true allelic peaks tower over this noise floor. In a degraded sample, the peaks are often attenuated, and the analyst must rely on the instrument's software to differentiate a genuine allele from a random spike in the detector signal. The spectral calibration of the instrument becomes a critical line of defense against misinterpretation. A precise matrix calculation ensures that the emission from a specific dye label is correctly assigned to its virtual bin and does not appear as a pull-up peak in a different color channel, an artifact that can easily be mistaken for a minor contributor in a degraded mixture.

The polymer matrix within the capillary also plays a subtle but significant role in noise management. As the separation medium ages or is subjected to repeated high-voltage runs, it can develop microscopic variations in density or accumulate contaminants that scatter the laser light. This scatter manifests as an increase in the background fluorescence across all detection channels. While a robust separation polymer formulation is designed to resist this degradation, it is a consumable with a finite life. Laboratories processing a high volume of challenging, degraded samples often implement more frequent polymer changes or utilize specialized conditioning reagents to maintain the lowest possible background. This practice ensures that the sensitivity reserve of the instrument is not eroded by avoidable matrix noise, thereby preserving the ability to detect those faint, low-molecular-weight alleles that are the only remaining signature of a particular evidence item.

The Role of Internal Size Standards in Fragment Mobility Correction

Accurate sizing of DNA fragments is the primary output of capillary electrophoresis, and this process relies entirely on the co-injection of an internal size standard with every sample. The standard contains a set of DNA fragments of known length, labeled with a spectrally distinct dye that does not interfere with the sample's detection channels. As these fragments migrate through the capillary, the data collection software establishes a standard curve correlating migration time with fragment size. For degraded DNA, the precision of this curve in the lower size range is paramount. If the smallest fragment in the size standard migrates anomalously due to local variations in polymer temperature or viscosity, the sizing of all short tandem repeat alleles in that injection will be shifted, potentially leading to an off-ladder allele call or a false exclusion of a matching reference sample.

The robust design of a forensic genetic analyzer ensures that this internal lane standard remains a faithful ruler even when the sample matrix is challenging. Residual components from the amplification reaction, such as excess primers, salts, and unincorporated nucleotides, can alter the ionic environment within the capillary. This change in ionic strength can cause subtle shifts in the migration rate of DNA, a phenomenon known as electroosmotic flow variation. Advanced analysis software employs dynamic size calling algorithms that can correct for these minor fluctuations by re-calibrating the standard curve against the internal size standard peaks in real-time. This ensures that a 120 base pair allele from a degraded bone sample is accurately sized against the same allelic ladder run on a reference standard, maintaining the integrity of the database search and the consistency of interpretation across different analytical runs.

Enhancing Resolution of Fragmented Alleles Through Polymer Chemistry

The physical heart of the separation lies within the viscous polymer network filling the narrow bore of the glass capillary. This is not a simple aqueous buffer but a highly engineered, long-chain molecule that creates a dynamic sieve. As DNA fragments are pulled through this matrix by the electric field, larger fragments must disentangle and snake their way through the transient pores with greater difficulty than smaller fragments. The sensitivity of the instrument to degraded DNA is directly correlated with the resolving power of this polymer. A polymer optimized for forensic applications must differentiate between fragments that differ in length by only a single nucleotide, a requirement that is absolutely essential for distinguishing between adjacent short tandem repeat alleles that may share the same sequence length but differ in the number of repeat units.

When dealing with highly fragmented DNA, the region of interest on the electropherogram is often crowded. The combination of short tandem repeat alleles from the miniSTR loci, together with the remnants of primer artifacts and the internal size standard peaks, creates a complex mixture of signals within a narrow migration window. A low-resolution polymer matrix would smear these fragments together, creating broad, unresolved humps rather than sharp, Gaussian peaks. The specific formulation of the denaturing polymer, typically a linear polyacrylamide or a proprietary polydimethylacrylamide derivative, is designed to maintain peak sharpness even after hundreds of consecutive injections. The addition of a denaturant, such as urea, ensures that the DNA remains single-stranded during the run, preventing secondary structures and heteroduplex formation that would otherwise create shoulder peaks and complicate the interpretation of degraded mixture profiles.

How Polymer Viscosity Affects Small Fragment Mobility

The viscosity of the separation matrix is a carefully calibrated parameter. If the polymer is too dilute, the sieving action is lost, and all fragments migrate at roughly the same speed, resulting in a failure to resolve alleles. If the polymer is too concentrated or viscous, the injection process becomes inefficient, and the migration time extends unreasonably, causing band broadening through diffusion. For degraded samples, the optimal viscosity ensures that the smallest fragments, those below 100 base pairs, are not swept through the detection window so rapidly that they co-migrate with the primer peak front. The instrument's pumping mechanism must deliver this viscous fluid into the capillary array with absolute uniformity. Any variation in fill time or pressure between capillaries in a multi-channel array will introduce run-to-run variation in migration times, which directly impacts the precision of the size calling.

Maintaining this precise viscosity over the lifetime of a run is a challenge because the high voltage applied during electrophoresis generates Joule heating. As the current passes through the conductive buffer, the temperature inside the capillary rises, which in turn lowers the viscosity of the surrounding polymer. A temperature control system, often a Peltier device or a recirculating liquid coolant, is integrated into the instrument to actively remove this heat and maintain a constant capillary temperature. This thermal stability is particularly important for the reproducibility of degraded DNA analysis. A slight drift in temperature during a run can cause the later, larger fragments to migrate relatively faster than the earlier, smaller fragments, skewing the size calling curve. By locking the temperature to a set point, the analyzer ensures that a 70 base pair fragment runs with the same relative mobility every time, providing the consistency required for the accurate comparison of profiles in a convicted offender database.

Denaturing Conditions and the Prevention of Secondary Structures

While genomic DNA is double-stranded, capillary electrophoresis analyzes single-stranded molecules produced during the polymerase chain reaction. However, even single strands can fold back on themselves to form hairpin loops or other secondary structures driven by intramolecular base pairing. These structures are more compact than a linear strand of the same length and therefore migrate through the polymer matrix at an anomalously fast rate. This can result in a genuine allele appearing as a split peak or a shoulder on the electropherogram. For a degraded sample that already exhibits a weak signal, this splitting of the peak height can drop the signal below the analytical threshold, leading to a missed allele call. The separation polymer contains high concentrations of chemical denaturants to completely unfold these strands.

The effectiveness of this denaturation is dependent on the run temperature and the quality of the formamide used to resuspend the sample prior to injection. A properly formulated highly deionized formamide solution ensures that the DNA remains linear and unstructured from the moment it enters the capillary until it passes the detection window. If the denaturant degrades over time or absorbs moisture from the air, its efficacy drops, and secondary structures begin to re-emerge. In the context of degraded DNA, where analysts are scrutinizing the low molecular weight region of the electropherogram, these conformational artifacts can be particularly confusing. They often mimic the appearance of tri-allelic patterns or stutter bands, adding a layer of interpretive complexity that a well-maintained, high-sensitivity capillary electrophoresis system is specifically engineered to eliminate.

Balancing Separation Speed with High Resolution in the Low Base Pair Range

There is an inherent trade-off between the speed of an analytical run and the resolution it can achieve. Higher voltages drive fragments through the polymer faster, but this also narrows the window of separation and reduces the distance between adjacent peaks. For laboratories processing thousands of reference samples for a database, speed is a primary metric. For casework involving severely degraded remains, however, resolution in the 50 to 250 base pair window takes precedence over total run time. The genetic analyzer allows for the customization of run protocols to optimize this balance. By adjusting the run voltage or the length of the capillary, the operator can effectively stretch out the migration times of the smaller fragments, increasing the spatial separation between them as they cross the laser beam.

This increased spatial separation translates directly into a higher effective resolution. Two fragments that differ by a single base pair, which might co-migrate as a single broad peak under a high-speed protocol, can be cleanly separated into two distinct, quantifiable peaks under a high-resolution protocol. For a degraded sample where the only surviving alleles are those under 150 base pairs, this enhanced separation is invaluable. It allows the software's peak detection algorithm to correctly identify the number of true alleles, even when they are present at very low signal intensities. The ability to toggle between high-throughput and high-resolution modes within the same multichannel capillary array provides the forensic laboratory with the flexibility to apply the optimal separation strategy to each specific type of sample, whether it is a pristine buccal swab or a challenging, decades-old bone fragment.

Optimizing Detection of Low Copy Number and Trace Fragments

The term low copy number refers to scenarios where the amount of starting DNA is below the optimal input range recommended by the amplification chemistry manufacturer. In such cases, the resulting electropherograms are characterized by significant stochastic variation. Alleles from a heterozygous individual may amplify unevenly, with one allele producing a robust peak while the partner allele is barely detectable. This imbalance is compounded in degraded samples where the larger allele is already at a copy number disadvantage due to fragmentation. The sensitivity of the capillary electrophoresis genetic analyzer is therefore the last line of defense against losing this valuable genetic information. The instrument must be capable of faithfully recording fluorescence signals that are just barely above the electronic noise of the charge-coupled device detector.

Achieving this level of sensitivity requires a holistic approach to instrument maintenance and operation. The laser excitation source must be operating at its peak power output, and the optical path from the capillary window to the charge-coupled device must be free of dust and polymer residue. The camera itself is often cooled to sub-zero temperatures to reduce dark current noise, a type of thermal noise that can obscure faint signals. In the analysis of degraded and low-template DNA, the operator often lowers the analytical threshold from the standard setting. This allows the software to mark peaks that would normally be filtered out as noise. While this practice increases the chance of detecting a true allele, it also increases the risk of interpreting a random spike as genetic data. Therefore, the experienced analyst relies on the consistent performance of the analyzer to ensure that any peak above this lowered threshold exhibits the characteristic Gaussian shape and spectral purity of a true DNA fragment.

Optimizing Laser Power and Charge-Coupled Device Sensitivity

The detection system relies on the excitation of fluorescent dyes attached to the DNA primers. A laser beam is focused through the detection window of the capillary, and as each dye-labeled fragment passes through this window, it absorbs energy and emits light at a longer, characteristic wavelength. The intensity of this emitted light is directly proportional to the power of the excitation laser. A slight degradation in laser output, which can occur naturally over thousands of hours of use, will result in a proportional drop in the measured relative fluorescence units. For a standard reference sample, this drop might go unnoticed. For a degraded trace sample, however, it can be the difference between an allele being called at 55 relative fluorescence units and falling below the detection limit at 45 relative fluorescence units.

Regular spatial calibration of the charge-coupled device ensures that the pixels assigned to each capillary are correctly aligned with the optical path. Over time, thermal expansion and contraction within the instrument can cause the optical bench to drift microscopically. A misaligned camera will collect light from the edge of the emission beam rather than its bright center, effectively reducing the collection efficiency. The instrument's software includes diagnostic routines that measure the signal intensity of a calibration standard across the array, allowing for automated adjustments to the camera position. By maintaining peak optical alignment and verifying laser stability, the laboratory ensures that the analyzer retains its full dynamic range, capable of detecting the faintest peaks from a bone DNA extraction while simultaneously recording the high-intensity peaks of the internal size standard without saturation.

Injection Parameters for Maximizing Template Loading from Dilute Solutions

Before separation can occur, the DNA fragments must be loaded into the capillary. The standard method is electrokinetic injection, where the capillary end and an electrode are placed into the sample well, and a voltage is applied. Charged DNA molecules migrate toward the opposite electrode and concentrate at the tip of the capillary. The amount of DNA injected is a function of the voltage, the injection time, and the ionic strength of the sample solution. For a dilute, degraded sample, the standard injection parameters may not introduce enough material into the capillary to generate a signal above the baseline. The operator can modify the injection protocol by increasing the injection voltage or extending the injection time to load more DNA.

This approach, however, is not without risk. Increasing the injection time also loads more salt and other contaminants from the sample matrix. These ions can destabilize the sample plug, causing it to migrate as a broad band rather than a tight zone, which degrades resolution. Furthermore, the electrokinetic process is biased toward smaller fragments, which migrate faster in the electric field. While this is advantageous for degraded DNA, an excessively long injection can overload the capillary with the very small primer and dye artifacts, saturating the detector and obscuring the early part of the electropherogram. The skilled technician must balance the desire for more signal with the need to maintain clean baselines and sharp peaks. The use of a post-amplification purification step, such as a spin column or a magnetic bead cleanup, can remove excess salts and primers, allowing for a more aggressive injection protocol without sacrificing data quality in the subsequent capillary electrophoresis run.

Filtering Signal from Noise Using Advanced Smoothing Algorithms

The raw data stream from the charge-coupled device camera is a series of data points representing fluorescence intensity over time. This raw signal contains not only the true Gaussian peaks of the DNA fragments but also high-frequency noise from the electronics and low-frequency drift from the background fluorescence of the polymer. The data collection software applies a series of mathematical filters to smooth the data and make the peaks more discernible. One common method is a moving average filter or a Savitzky-Golay filter, which reduces random noise while preserving the area and height of the true peaks. For low-template degraded samples, the choice of filter strength is a critical decision point that impacts the reported result.

An aggressive smoothing algorithm can make a noisy baseline look flat and a faint peak look more defined, but it also carries the risk of merging two closely spaced peaks or creating an artificial peak from a random noise spike. Conversely, insufficient smoothing leaves the analyst to visually parse a jagged trace, increasing subjectivity. The software on a forensic genetic analyzer is designed with default settings validated on a wide range of sample types, including compromised samples. These settings balance noise reduction with the preservation of fine structural details, such as the specific morphology of a stutter peak. By applying these mathematically robust algorithms, the system provides a consistent and objective foundation for the analyst to apply their professional judgment when interpreting the challenging electropherograms generated by degraded and low-template biological evidence.

Interpreting Complex Electropherograms Generated from Compromised Samples

The final visual representation of the analysis is the electropherogram, a plot of fluorescence intensity versus fragment size. For a pristine single-source sample, this plot is clean and easily interpreted. For a degraded sample, the plot is often a complex landscape of jagged peaks, sloping baselines, and inconclusive artifacts. The sensitivity of the capillary electrophoresis system provides the raw data, but it is the analyst's expertise, supported by the software's analytical tools, that extracts meaning from the chaos. The focus shifts from simply identifying peaks to evaluating the quality of the data. Questions arise regarding whether a small peak in the red dye channel is a genuine Y-chromosome marker or merely a pull-up from an overloaded blue dye peak. This process requires a deep understanding of the instrument's specific performance characteristics and the artifacts it is prone to produce under suboptimal conditions.

One of the most valuable features of modern analysis software is the ability to apply relative fluorescence unit thresholds that are dynamic or locus-specific. Because degradation preferentially depletes larger fragments, applying a single, static analytical threshold across the entire electropherogram is often inappropriate. A peak of 70 relative fluorescence units at a small locus like D3S1358 may represent a true allele, while a peak of the same height at a large locus like FGA is more likely to be noise or a stochastic amplification artifact. Advanced software allows the laboratory to establish different interpretation rules for different size ranges. This nuanced approach to data interpretation, enabled by the high-resolution data from the capillary electrophoresis platform, maximizes the recovery of probative information from compromised samples while minimizing the risk of introducing erroneous exclusions or inclusions into the investigative record.

Analyzing the Ski Slope Effect and Incomplete Adenylation Patterns

The hallmark of a degraded DNA profile is the ski slope effect, where the peak heights of the short tandem repeat loci decrease in a predictable manner as the fragment size increases. This visual pattern is a direct consequence of the preferential amplification and injection of shorter fragments. The analyst must distinguish this degradation pattern from a DNA mixture. In a mixture of two contributors, one major and one minor, the minor profile will exhibit lower peaks across all loci, but not necessarily the systematic, size-dependent drop-off seen in a degraded single-source sample. The genetic analyzer's ability to accurately quantitate the relative fluorescence units of each peak is essential for making this distinction. Software tools that plot the average peak height against the base pair size for each locus provide a quantitative measure of the degradation index, a metric that guides the interpretation strategy.

Another common feature in the electropherograms of compromised samples is incomplete adenylation, often called the split peak or minus A artifact. During the polymerase chain reaction, Taq polymerase adds a non-templated adenosine nucleotide to the 3' end of the nascent strand. In a robust reaction, this process goes to completion, producing a single sharp peak. In a degraded or inhibited sample, the efficiency of this final step is reduced, resulting in a mixture of amplicons with and without the terminal adenine. On the electropherogram, this appears as a pair of peaks separated by approximately one base pair, with the true allele peak accompanied by a smaller, faster-migrating shadow. While this is a known artifact, in a degraded sample where the true peak is already weak, the presence of the minus A peak can split the signal further, potentially dropping both peaks below the reporting threshold. The high resolution of the capillary electrophoresis system allows for the clean separation of these two species, confirming that the doublet is an amplification artifact and not a true microvariant allele, thereby preventing a false interpretation.

Dealing with Elevated Stutter and Dye Blob Artifacts in Degraded Samples

Stutter is a natural byproduct of the polymerase chain reaction process, caused by slippage of the polymerase enzyme on the short tandem repeat template. It typically manifests as a peak one repeat unit smaller than the true allele and is usually less than a fixed percentage of the true allele's height. In degraded samples, however, the absolute height of the true allele is diminished, but the stutter peak height does not decrease proportionally. As a result, the stutter ratio can exceed the standard interpretive threshold, making it difficult to distinguish a true minor allele from a stutter artifact in a mixture. The accurate sizing precision of the capillary electrophoresis genetic analyzer is critical here, as it confirms that the peak in question is exactly one repeat unit smaller and therefore more likely to be stutter than a true allele from a second individual.

Dye blobs present a different challenge. These are small, broad peaks caused by unincorporated fluorescent dye molecules from the amplification kit that co-migrate with DNA fragments. They lack the sharp Gaussian shape of a true allele and often appear as rounded humps. In a strong sample, these blobs are easily ignored. In a degraded sample where the analyst is scrutinizing the baseline for any hint of a true peak, a dye blob can be a significant source of confusion. A well-maintained capillary electrophoresis system, combined with proper post-amplification cleanup, minimizes the occurrence of these artifacts. When they do appear, the software's spectral deconvolution algorithms, which rely on a precise instrument conditioning protocol, are often able to subtract the dye blob signal from the allelic signal, revealing the true peak hidden beneath. This level of sophisticated signal processing is what transforms a sensitive instrument into an accurate and reliable forensic identification platform.

Determining the Number of Contributors in a Degraded Mixture

Mixture interpretation is the most complex task in forensic DNA analysis, and when the mixture is also degraded, the difficulty increases exponentially. The combination of degradation-induced allele dropout and mixture-induced allele sharing creates a vast range of possible genotype combinations. The foundation of any mixture interpretation is the accurate identification and sizing of all alleles present in the evidence sample. The capillary electrophoresis analyzer must provide data of sufficient quality to allow the analyst to confidently count the number of distinct peaks at each locus. A peak that is broad or misshapen due to poor polymer performance could hide a second allele, leading to an underestimate of the number of contributors.

Once the alleles are identified, the analyst can apply probabilistic genotyping software to calculate likelihood ratios. These software programs rely on models that incorporate the specific noise and artifact characteristics of the capillary electrophoresis instrument. For example, the model must account for the expected rate of stutter, the variability in peak height ratios between sister alleles, and the probability of allelic dropout given the observed degradation pattern. The more precise and reproducible the instrument's data, the more accurate the parameters of these probabilistic models become. A high-sensitivity analyzer that produces consistent peak morphology and low background noise provides a robust dataset for these complex statistical calculations, ultimately allowing the analyst to provide a meaningful weight of evidence even when the DNA profile is partial, degraded, and shared among multiple individuals. This capability is the reason that modern forensic DNA workflow solutions are centered around the performance envelope of the capillary electrophoresis platform.

Validating and Maintaining Sensitivity for Casework with Aged or Damaged Evidence

The theoretical sensitivity of a capillary electrophoresis genetic analyzer is established during initial installation and operational qualification. However, maintaining that level of performance over years of continuous operation requires a rigorous program of preventive maintenance and periodic verification. For laboratories that routinely process aged or damaged evidence, the tolerance for drift in instrument sensitivity is extremely low. A slight decrease in signal intensity that might be acceptable for high-quantity database samples is unacceptable when processing a limited quantity of DNA extracted from a decades-old piece of evidence. The validation plan must therefore extend beyond the standard manufacturer's recommendations to include protocols that challenge the system with samples that mimic the degraded and inhibited nature of real forensic casework.

This validation often involves the analysis of serially diluted control DNA to establish the limit of detection for each capillary in the array. It also includes the analysis of artificially degraded DNA, created by sonication or enzymatic digestion, to verify the system's ability to maintain size precision and peak resolution as the average fragment length decreases. Furthermore, the laboratory's quality assurance program dictates the frequency of running sensitivity checks and the criteria for determining when a capillary array has reached the end of its useful life. Replacing a multichannel capillary array is a significant operational expense, but it is a necessary investment to guarantee that the analytical results generated from challenging evidentiary samples meet the high standards of admissibility required by the judicial system. The decision to extend the use of a capillary array must be based on objective performance data, not solely on the number of injections logged by the instrument software.

Designing a Routine Quality Control Plan for Sensitivity Assessment

A comprehensive quality control plan for sensitivity assessment moves beyond the simple analysis of an allelic ladder. It incorporates a standard sensitivity control, a DNA sample of known concentration and genotype, that is analyzed under the same injection conditions as casework samples. The resulting electropherogram is evaluated for several metrics: the average peak height across all loci, the signal-to-noise ratio in the baseline region, and the percentage of alleles detected at heterozygous loci. A trending chart of these metrics over time provides an early warning of gradual system deterioration. A sudden drop in average peak height might indicate a clogged capillary or a failing laser. A gradual decline over several weeks could point to the slow degradation of the separation polymer or the accumulation of residue on the detection window.

The interpretation of this quality control data must be specific to the type of casework the laboratory performs. A laboratory that primarily analyzes aged skeletal remains may establish a higher sensitivity requirement than a laboratory focused on reference buccal swabs. The quality control sample itself should be chosen to reflect the challenging nature of the lab's caseload. It might be a sample diluted to a concentration just above the established limit of detection, or a mixture designed to test the instrument's resolution capabilities. By embedding these rigorous, context-specific quality control checks into the routine workflow, the laboratory creates a defensible record of instrument performance. This documentation demonstrates that on the day a particular evidence sample was analyzed, the capillary electrophoresis system was demonstrably capable of detecting the faint genetic signatures that are often the only link between an investigation and its resolution.

Preventive Maintenance Protocols to Sustain High Resolution for Fragment Analysis

The internal components of a genetic analyzer are precision mechanical, optical, and fluidic systems that require regular care. The fluidics path, which includes the polymer pump, the buffer reservoirs, and the capillary array, is particularly susceptible to the buildup of dried salts and polymer residue. A clog in the polymer delivery line can cause uneven filling of the capillaries, leading to variable resolution across the array. The manufacturer's recommended maintenance schedule includes procedures for flushing the system with warm water and specialized cleaning solutions to prevent this accumulation. The proper handling and storage of reagents like the genetic analyzer running buffer are equally important, as contamination or evaporation of the buffer can alter the pH and conductivity of the electrophoretic environment, directly impacting the resolution and reproducibility of the separation.

The optical components demand a different type of attention. Dust on the laser focusing lens or the charge-coupled device window scatters light and reduces the efficiency of fluorescence collection. The routine cleaning of these accessible optical surfaces is a delicate but necessary task. The use of lint-free swabs and optical-grade solvents ensures that the cleaning process does not inadvertently scratch or damage the sensitive coatings on the lenses. The laboratory environment itself plays a significant role in instrument health. A dedicated, climate-controlled space with positive air pressure and efficient particulate filtration minimizes the ingress of dust and stabilizes the ambient temperature. These proactive measures extend the operational life of the instrument's core components and ensure that the high resolution required for the analysis of degraded DNA fragments is consistently delivered, run after run.

Documentation of Sensitivity Limits for Admissibility in Legal Proceedings

The final report generated from a capillary electrophoresis run carries significant weight. In legal proceedings, the methods used to generate that report are subject to scrutiny. The laboratory must be able to produce documentation that establishes the reliability of the specific instrument used. This includes the initial validation data, the ongoing calibration records, and the maintenance logs. A critical component of this documentation package is the established analytical threshold, the minimum relative fluorescence unit value at which a peak is considered a true allele and not noise. This threshold is not an arbitrary number; it is derived empirically from the analysis of negative control samples and sensitivity studies performed on that specific instrument.

Demonstrating that the analytical threshold is valid for the type of sample tested is crucial. For example, the threshold for a degraded bone sample may need to be justified differently than the threshold for a liquid blood sample. The laboratory's standard operating procedures must clearly define the process for peak interpretation, including the rules for dealing with artifacts common in low-template, degraded samples. The ability to produce a complete audit trail from the integrated DNA workstation through to the final electropherogram provides a chain of custody for the data itself. This level of transparency and rigorous documentation, built upon the precise engineering of the capillary electrophoresis platform, is what allows the scientific findings to withstand adversarial challenge and provides the court with confidence in the reliability of the DNA evidence presented.
